Proposed Engineering & 3D Concept Gallery
Explore 3D blueprints, custom engineering layouts, and concept designs illustrating how our upcoming cold chain systems and refrigeration projects will look.
Proposed Cold Storage Concepts. Uncompromised Engineering.
Browse through our 3D CAD blueprints and conceptual models showing the design precision of our planned structural panels, clean rooms, heavy-duty condensing machinery, and real-time electronic panel setups. Click any project card to open full-screen lightbox details.

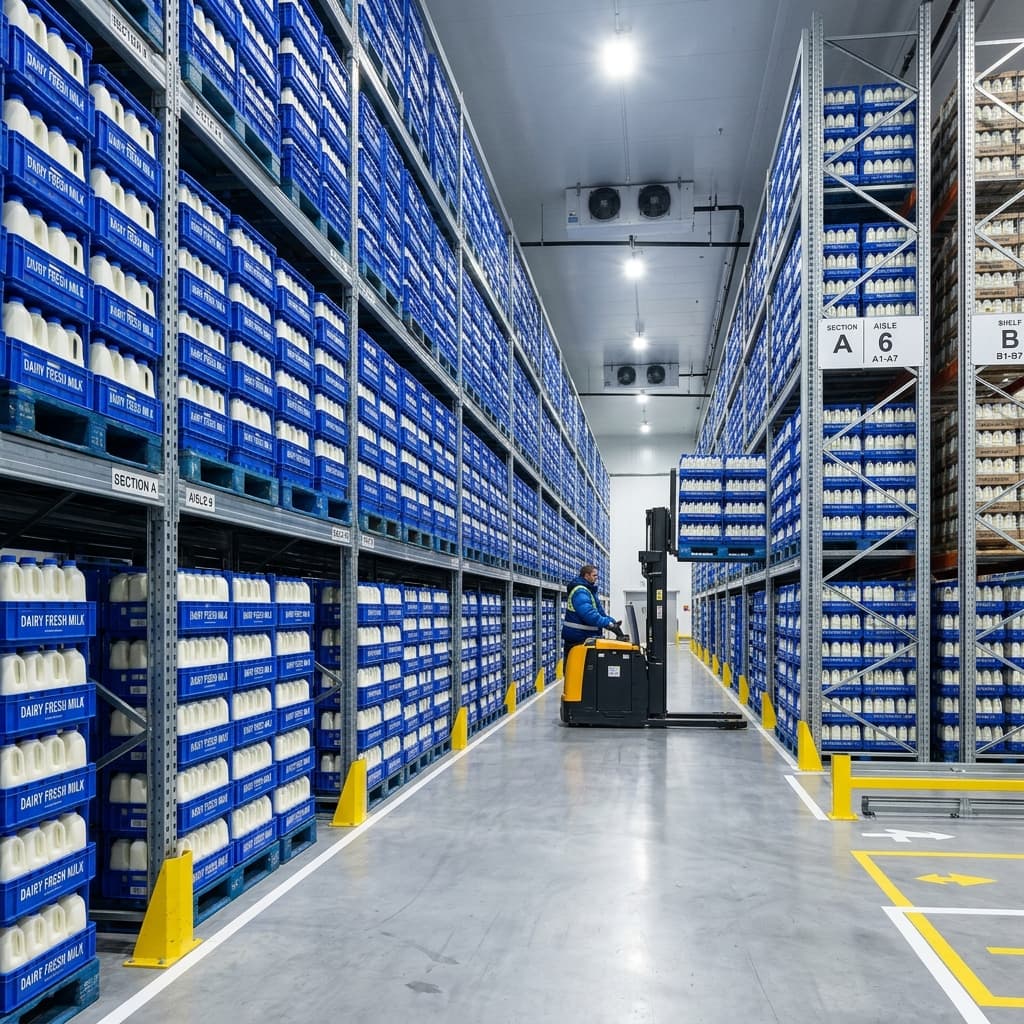

Large-Scale Dairy Cold Warehouse
Rigged with pre-insulated heavy duty cam-lock panels and custom concrete floor slabs to support constant forklift operations.

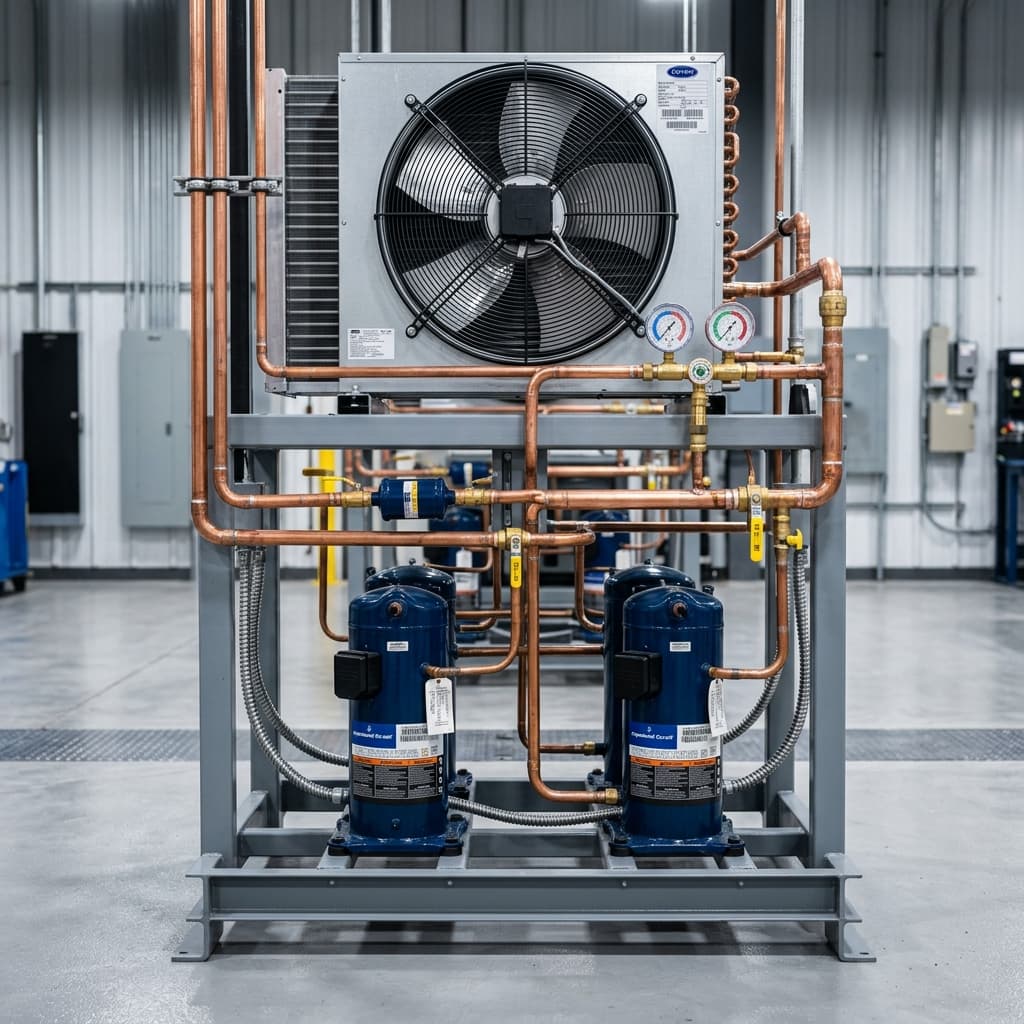

Multi-Compressor Condensing Rack
Centralized parallel rack system delivering massive cooling loads with step-by-step digital scroll motor modulation.

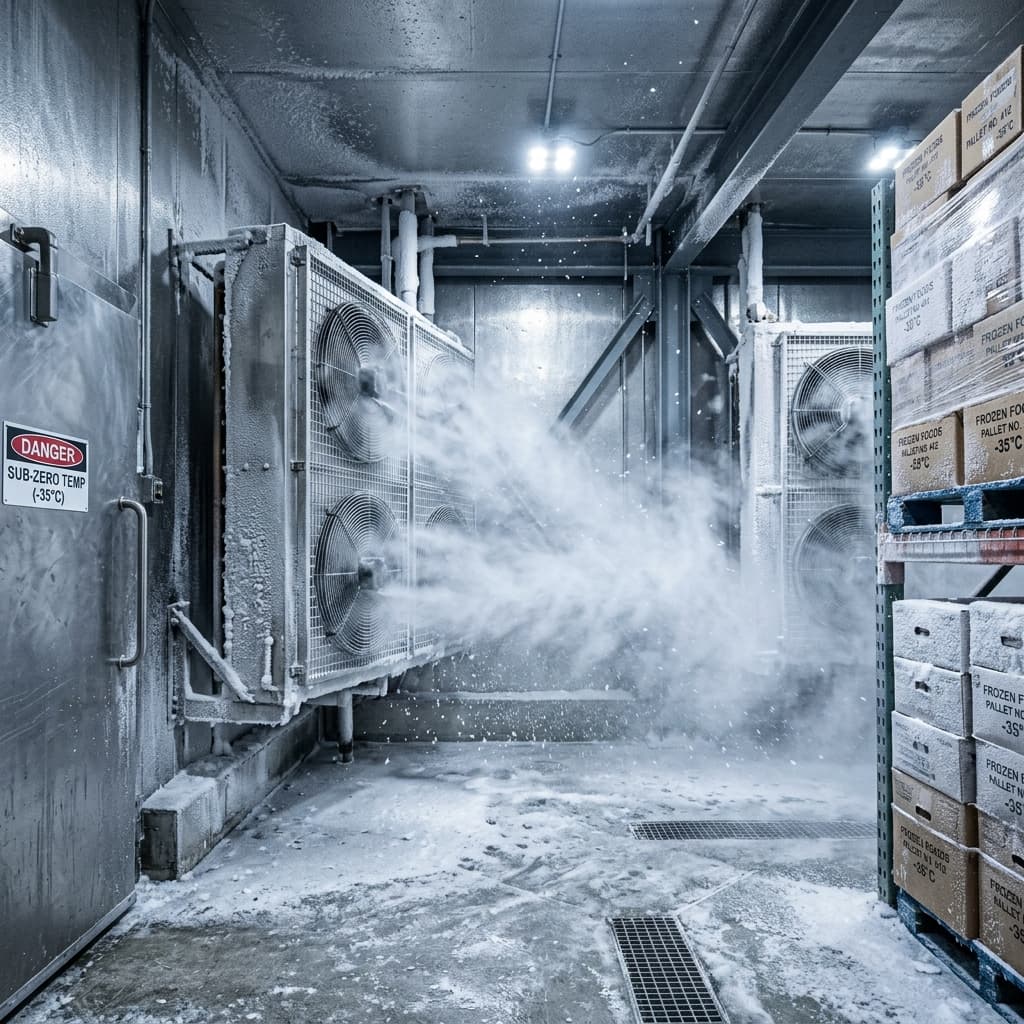

Fast-cycle Shock Meat Blast Freezer
Achieves rapid cooling from +70°C down to severe sub-zero -18°C in under 90 minutes to preserve food cell texture.

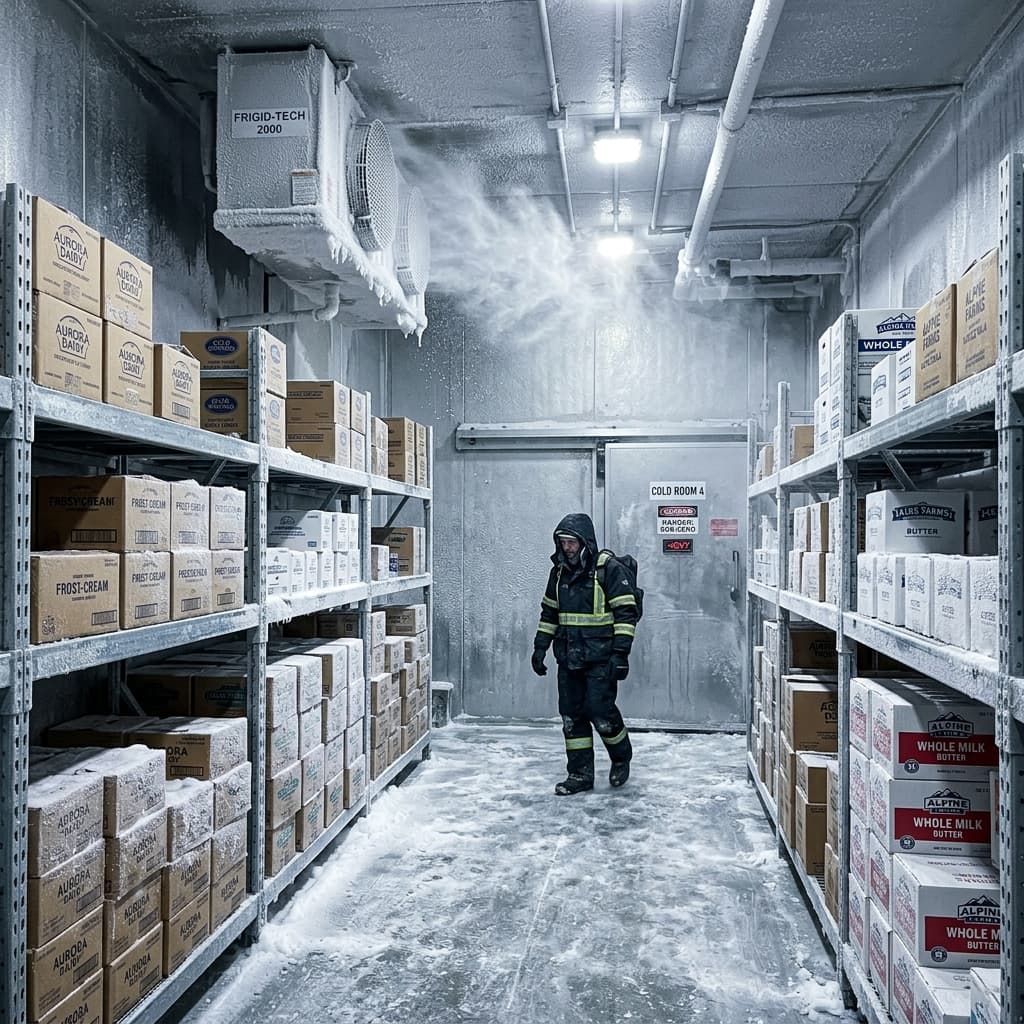

Deep Freezer Room Assembly
Equipped with severe low-temperature air drop pressure relief valves and pre-insulated anti-frost floor grids.

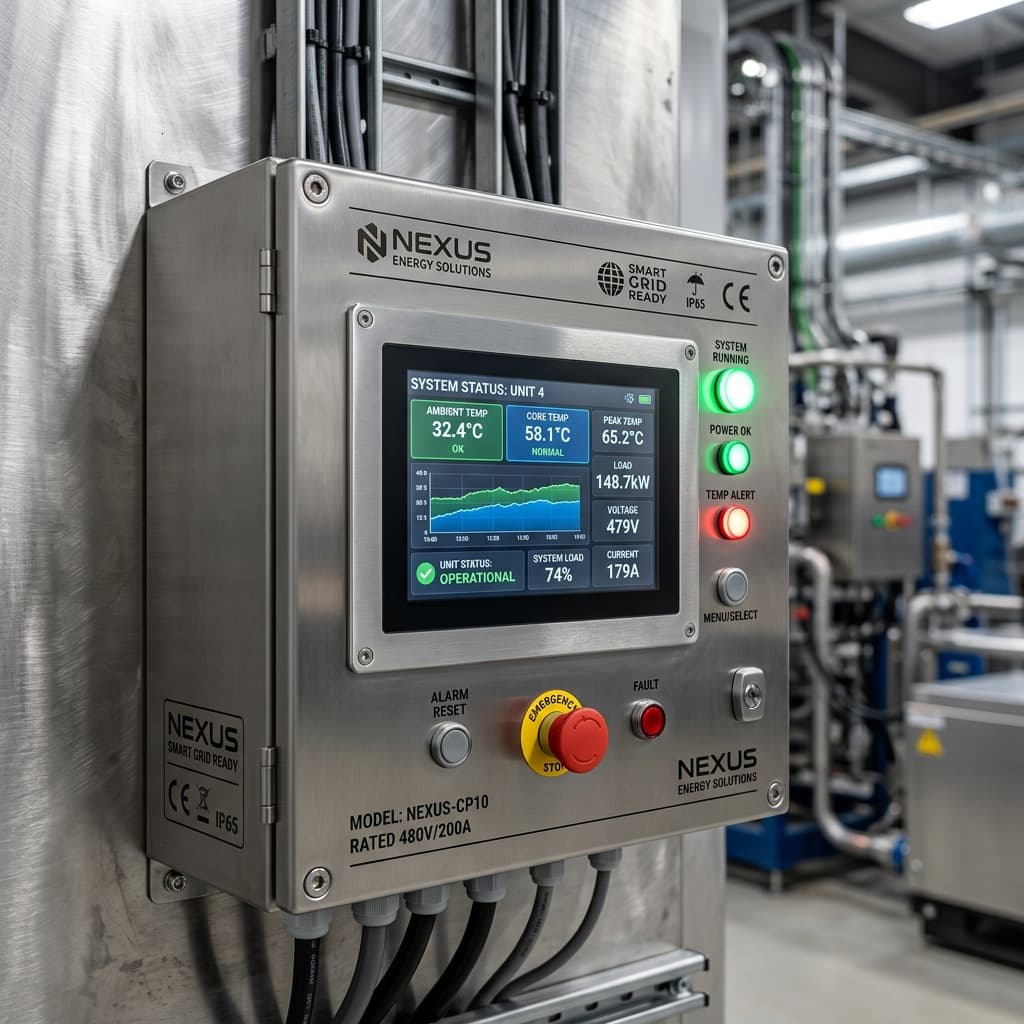

Integrated Electrical PLC Control Panel
Features interactive touch controls, high-voltage phase sequence selectors, and real-time remote cloud telemetry integrations.

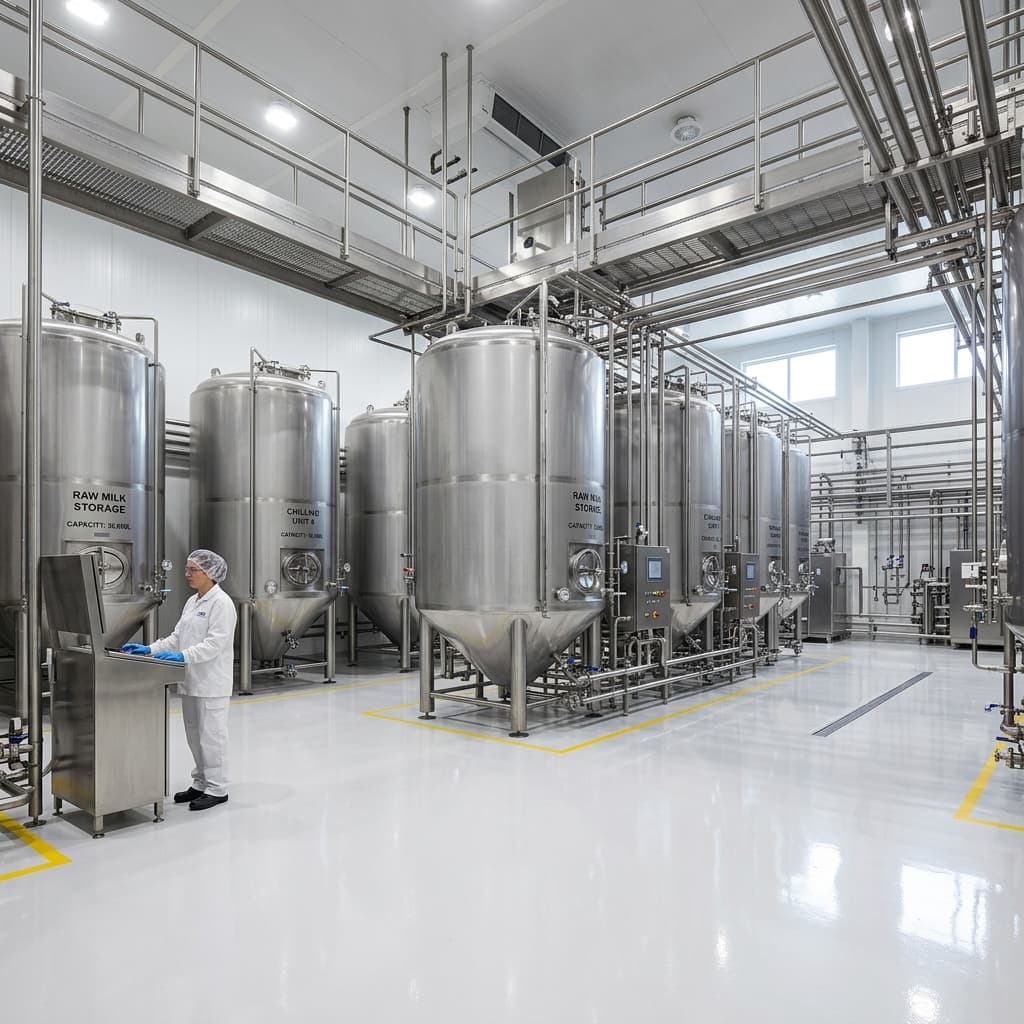

Dairy Processing & Chilling Plant
Raw milk holding cold rooms designed with integrated SS-304 food-grade sanitization washdowns.
Trusted by Businesses Across India
From dairy farms to pharmaceutical logistics — our clients trust ThermoVault for precision cold chain engineering.
ThermoVault installed a state-of-the-art milk chilling and cold storage system for our 20,000 LPD dairy plant. The SS-304 food-grade panels and integrated washdown system exceeded every expectation. Our milk freshness window increased by 3 days.
Suresh Yadav
Dairy & Milk Processing Plant, Pune
We needed strict temperature-controlled storage for our pharmaceutical products at 2°C to 8°C. ThermoVault delivered a validated cold room with digital monitoring and alarm systems. Regulatory audits have been smooth ever since.
Priya Iyer
Pharma Logistics, Chennai
Our blast freezer and -25°C frozen prawn storage facility was designed and executed by ThermoVault within 6 weeks. The dual evaporator grid and airtight insulated panels maintain perfect sub-zero conditions for our export-grade catch.
Mohammed Shaikh
Seafood Export House, Ratnagiri
ThermoVault guided us through the entire NHB subsidy process and helped us get a 35% back-ended capital grant on our 500 MT horticulture cold store. The project was completed on schedule and within budget. Highly recommended!
Ramesh Patil
Agro Cold Chain Operator, Nashik
Have a Project in Mind?
Let's build a reliable and efficient cold chain solution for your business.
